Product name:Sound insulation device for Shinkansen steel beam bridge (3S sheet)
Project name,installation site
Iwabuchi overbridge, Tokaido Shinkansen
Date of construction
2006 / 12
Date of investigation
2011 / 12
Duration
8 Years
Specification of ZAM™
2.3mm K27
Photo of the project(early years)

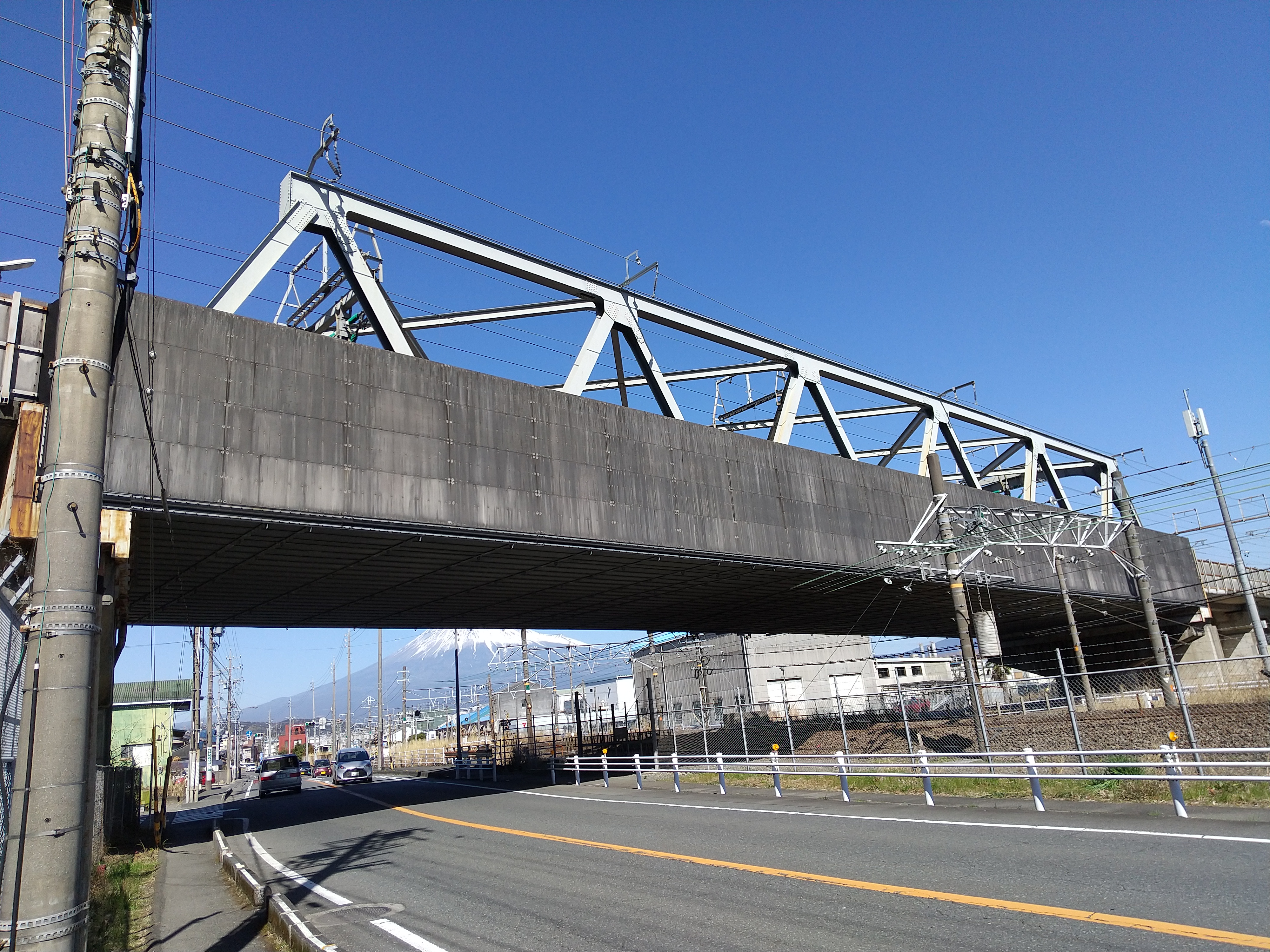

3S sheet installation place (Iwabuchi overbridge)
Photo of the project (Aging)
-
3S sheet composition
-
After 3S sheet installation
-

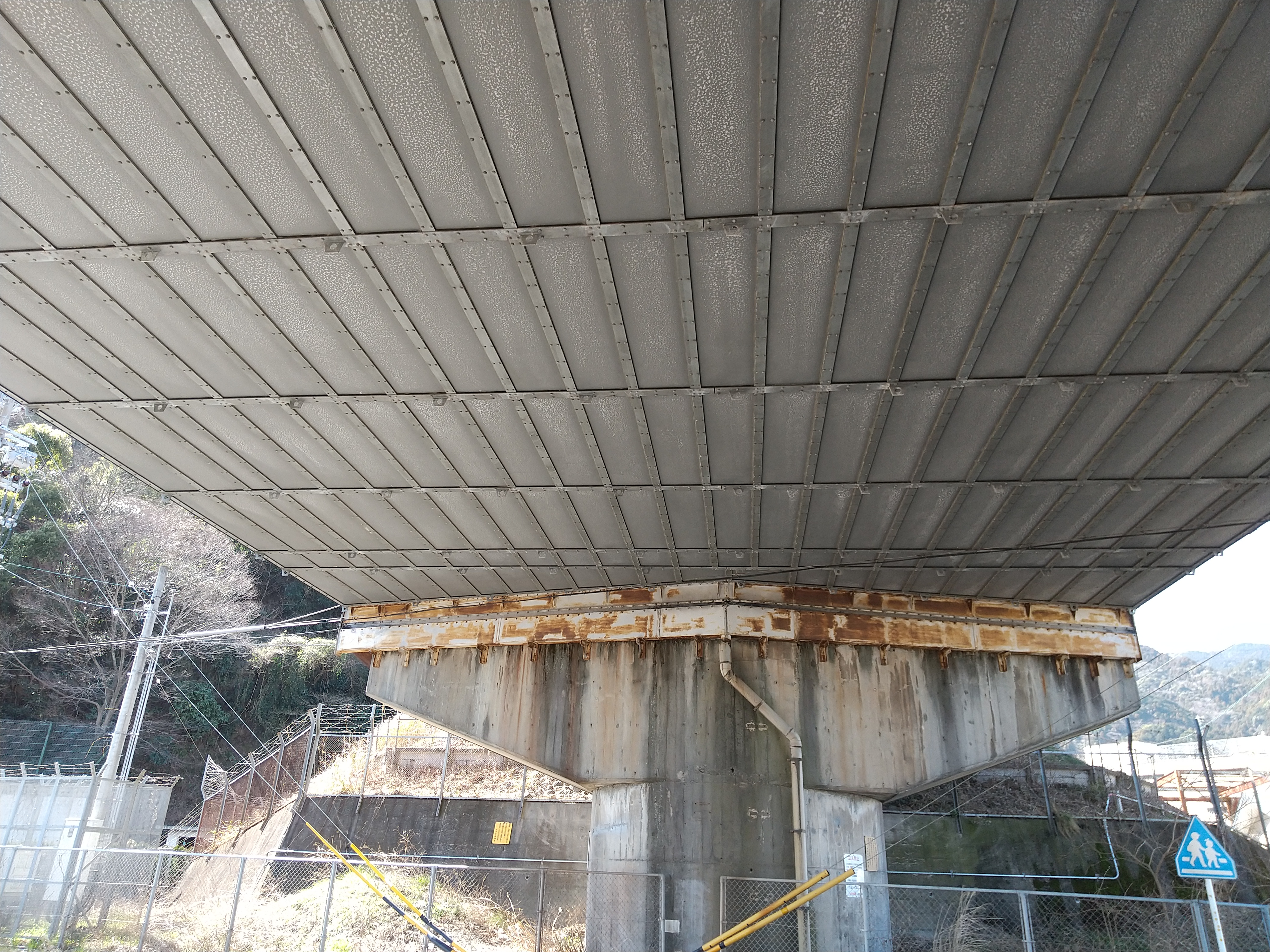

8 years after 3S sheet installation
-
Enlarged view of the 3S sheet
-

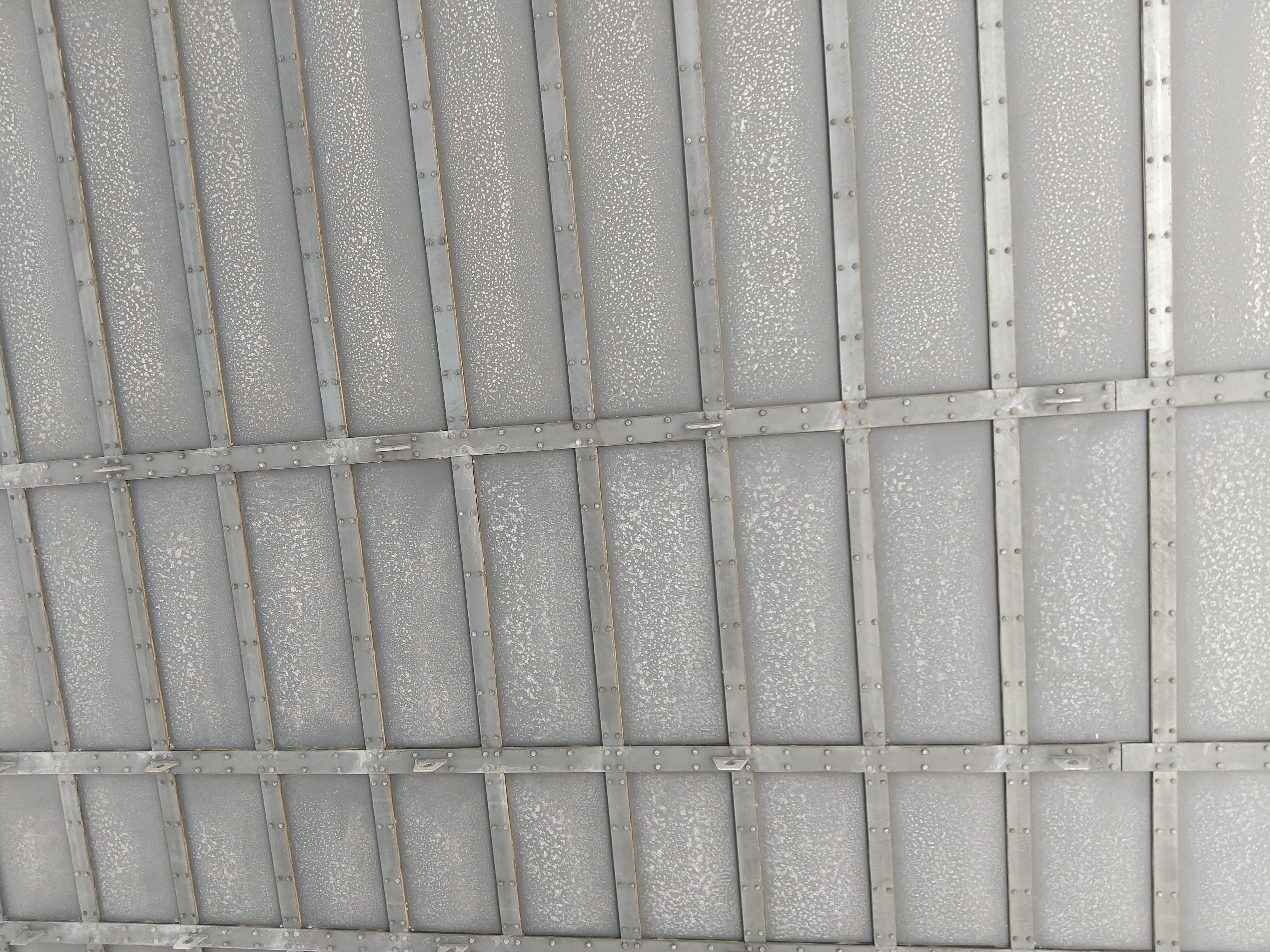

Part of the 3S sheet where white rust generated
-
3S sheet composition
-
After 3S sheet installation
