Titanium for Automobile (mufflers)
For their excellent properties, the titanium alloy products and commercially pure titanium products we have developed for mufflers using our original chemical composition series are widely adopted for motorcycles and automobiles. Additionally, thin sheets of commercially pure titanium are used for fuel tanks of motorcycles.
Characteristics
Workability

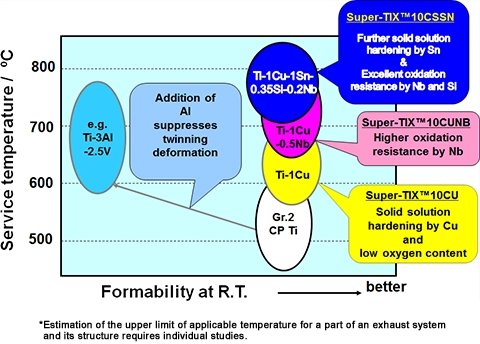

Our titanium alloys for muffler Super-TIX™ 10CU, 10CUNB, and 10CSSN were developed based on our original chemical composition sereies with copper (Cu) added to them.
They have both excellent cold workability similar to pure titanium and much better heat resistance.

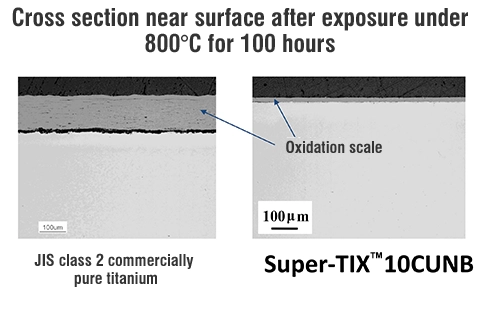

High-temperature oxidation resistance
Our original alloys indicates excellent oxidation resistance to be required in parts used in exhaust systems.
High-temperature strength
In a 700°C atmosphere, our original alloys Super-TIX™ 10CU, 10CUNb, indicate about 50%, and 10CSSN indicates 80% higher high-temperature strength than commercially pure titanium, respectively.
High-temperature fatigue resistance
At 600°C and 700°C atmosphere, Super-TIX™ 10CU, 10CUNb indicates approximately 100%, and 10CSSN indicates 200% higher fatigue resistance than commercially pure titanium, respectively.
Application and adoption examples

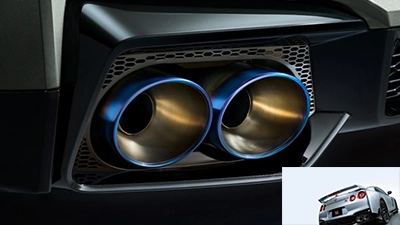

Mufflers of NISSAN GT-R (Super-TIX™ 10CU)

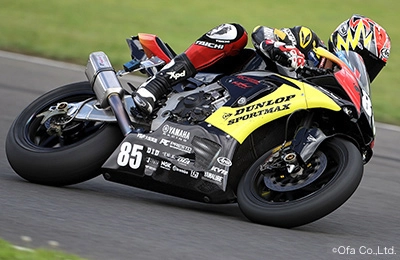

Mufflers of endurance race motorcycles (Super-TIX™ 10CUNB)

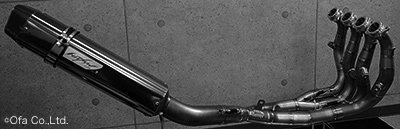

Aftermarket mufflers (Super-TIX™ 10CUNB)

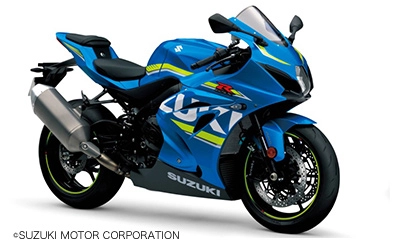

Mufflers of SUZUKI sport motorcycle GSX-R1000 (Super-TIX™ 10CU)

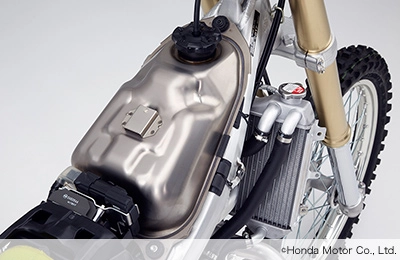

Fuel tanks of HONDA off-road motorcycle CRF450R (TP270C)
